Network Settings

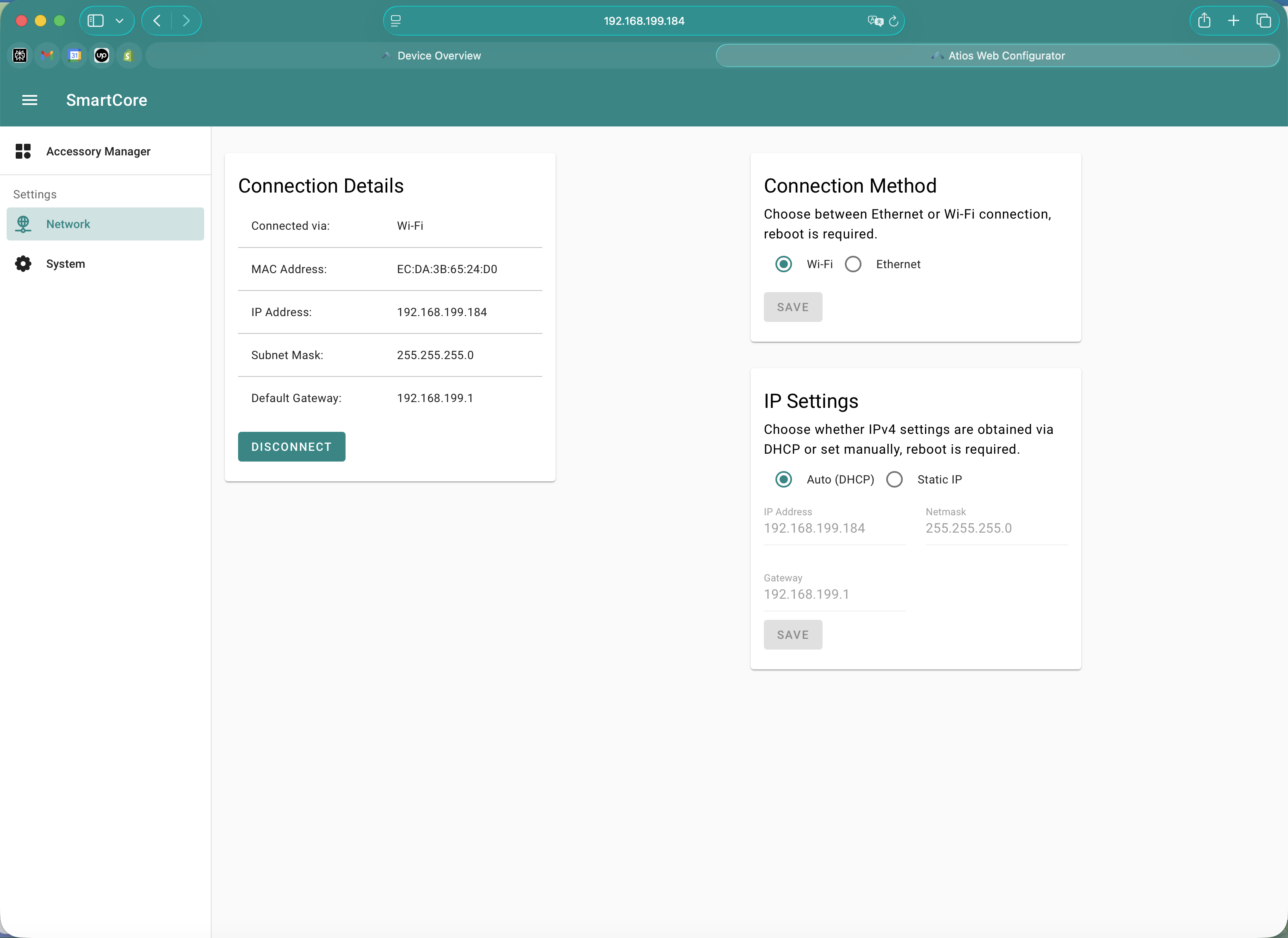

Connection Details

The Connection Details panel shows the current network status of the SmartCore, including the connection type, MAC address, IP address, subnet mask, and default gateway.

Connection Method

Choose between Ethernet and Wi-Fi. A reboot is required after changing the connection method.

To switch to Wi-Fi:

1. Select Wi-Fi and click Save.
2. Reboot the device from System Settings → Reboot.

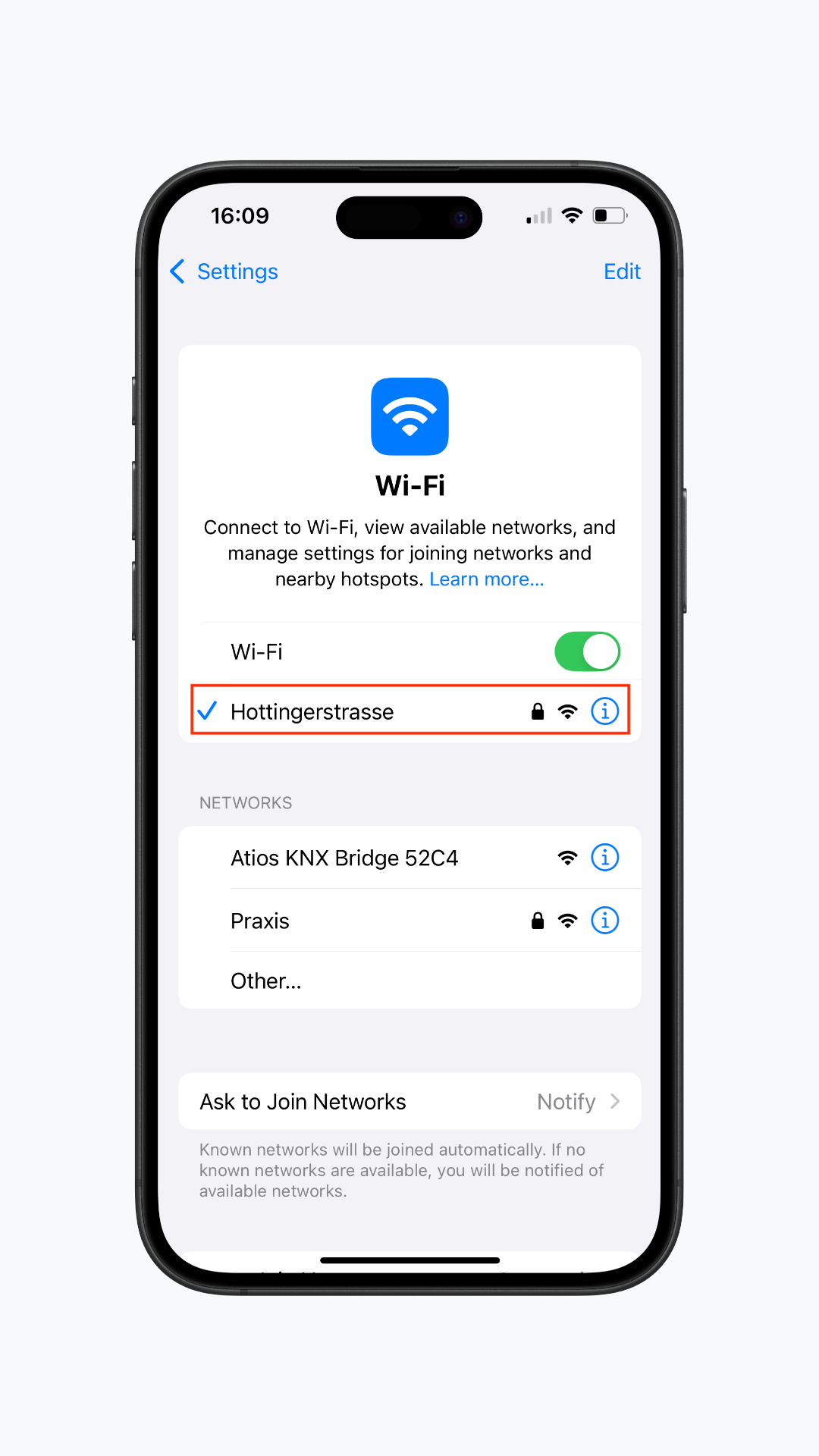

3. After rebooting, the SmartCore creates its own Wi-Fi network (access point). Open your phone or laptop, go to your Wi-Fi settings, and connect to the network named Atios SmartCore.

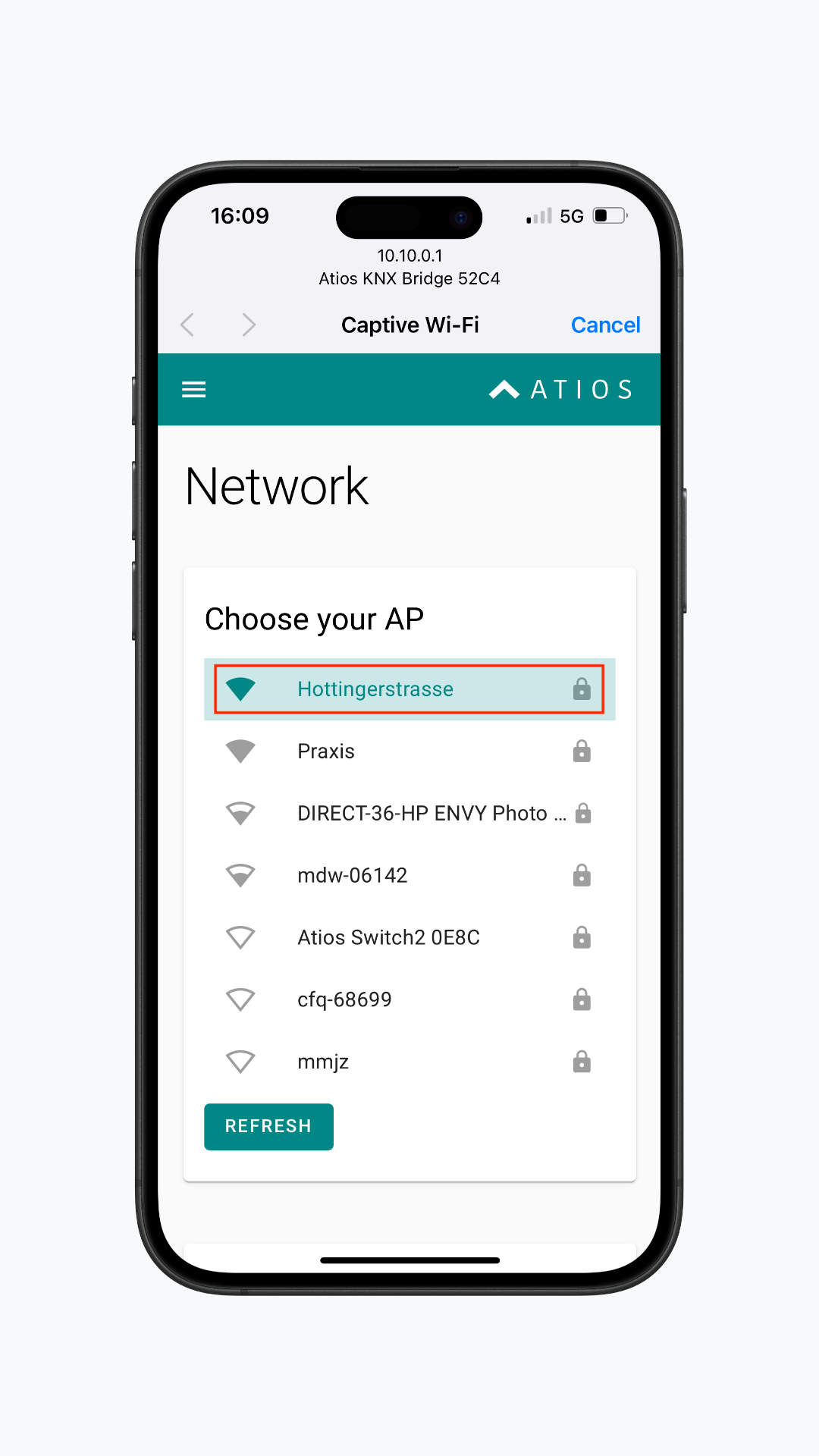

4. You will be redirected to the device's network configuration page. Select your home Wi-Fi network, enter the password, and click Connect.

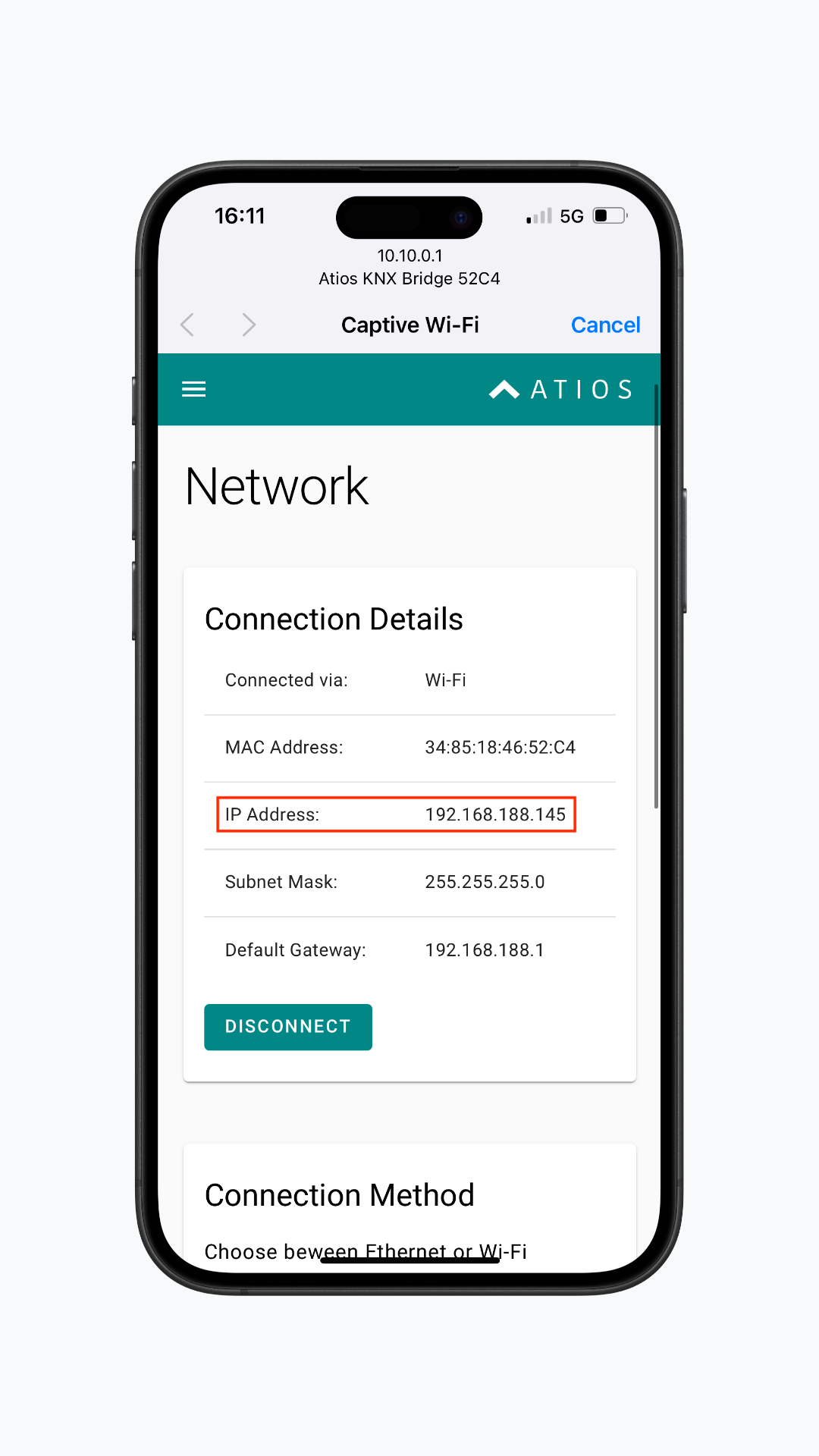

5. The device will now connect to your Wi-Fi network. Find the new IP address in Connection Details and use it to access the Web Interface.

IP Settings

Choose whether IPv4 settings are obtained automatically via Auto (DHCP) or configured manually with a Static IP.

For a static IP, enter the IP address, netmask, and gateway, then click Save.

WARNING

A reboot is required after changing IP settings.
